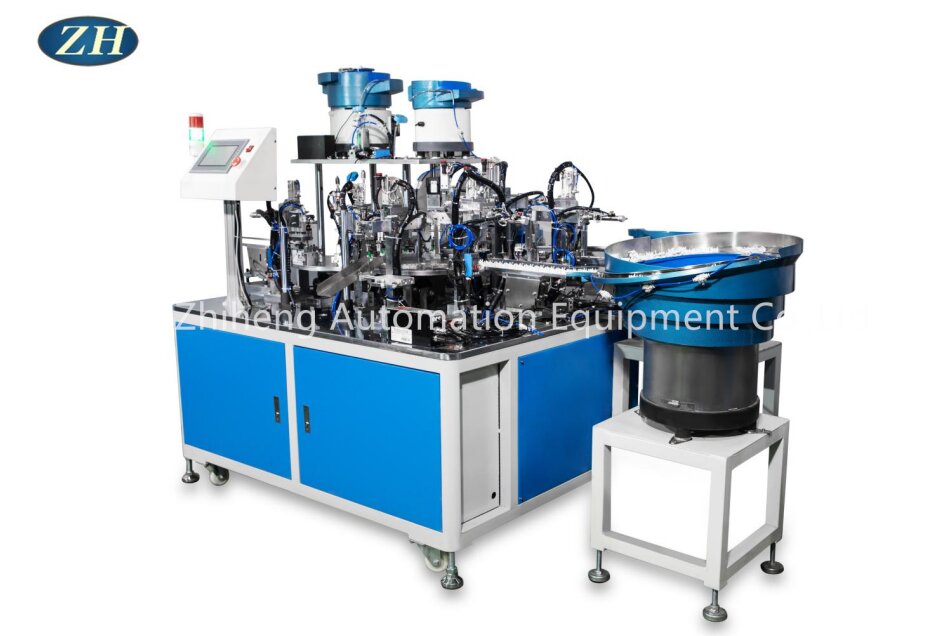

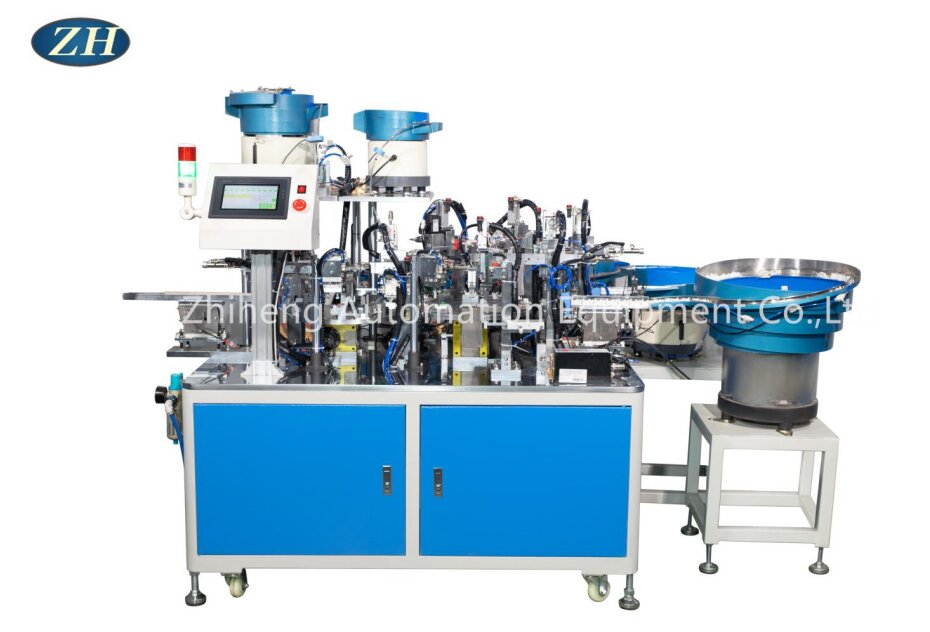

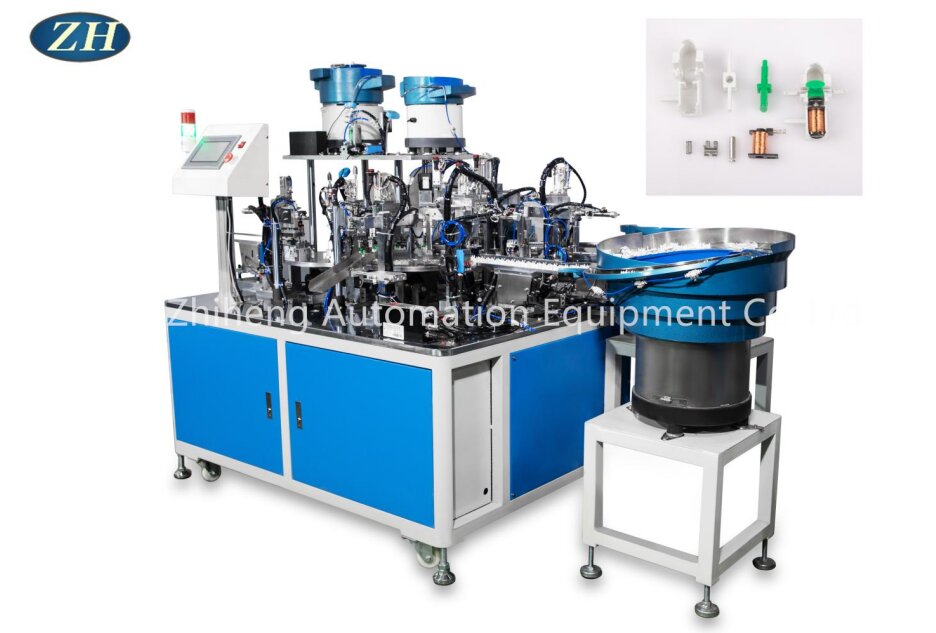

Push-Button Assembly Machine Line Easy To Maintain

Introduction of Push-Button Assembly Machine Line Easy To Maintain:

Yuyao Zhiheng is one of Push-Button Assembly Machine Line Easy To Maintain manufacturers and suppliers in China who can wholesale Push-Button Assembly Machine Line Easy To Maintain. We can provide professional service and better price for you. If you interested in Push-Button Assembly Machine Line Easy To Maintain, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.Key components, such as motors and controllers, are placed in easily accessible locations to reduce the difficulty of disassembly. Use quick disassembly structure (such as fasteners, quick-insert joints) to avoid complex bolt fixing.The production line is divided into independent modules (e.g. assembly station, transmission system, control system), which are connected through standardized interfaces.

Parameter (Specification) of Push-Button Assembly Machine Line Easy To Maintain:

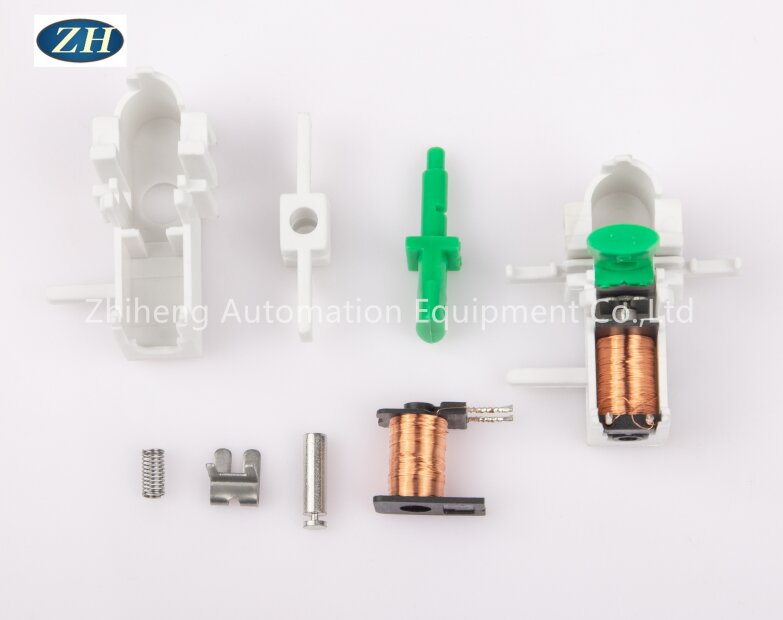

1. Automatic feeding base button

2. Detection of base button

3.Automatic feeding plastic pin

4.Automatic feeding Stainless steel plate

5.Automatic assembly the plastic pin and Stainless steel plate

6.Automatic feeding the plastic pin and stainless steel plate assemblies

7.Detection of the plastic pin and stainless steel plate assemblies

8.Automatic feeding reset button

9.Detection of reset button

10.Manual feeding the coil

11.Put the spring into the coil

12.Insert the core into the coil

13.Detection of the spring and core

14.Automatically mounts the assembled coil into the button base

15.CCD check the installation

16.Automatic blanking of good and bad products

Specification,

Power supply:AC 220V /50HZ

Air  pressure：above 0.6 MPa

Yield:1500-1800PCS/hour
